MULTI-FUNCTION DASH DISPLAY LOGGER (MFD); BLK; 0-4-10K RPM
The ST8916 Multi-Function Display system combines the proven benefits of integrated STACK Display systems with the latest STACK Multi-Function Technology. The Stack MFD comes standard with 14 inputs (enough to handle most drivetrain and driver input data streams) and can be expanded to monitor up to 45 channels for more advanced users. System includes internal voltage channel, 3 +/- 6g internal accelerometers, and lap sensor channel standard as well as 4 Universal pulse (speed) / analog (0-5v) inputs and 6 standard analog (0-5v) inputs. Lap beacon receiver and wheel speed sensor standard, to enable engine RPM, wheelspeed, g-force data and track mapping out of the box. Stack MFD's have 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional), with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
The ST8916 Multi-Function Display system combines the proven benefits of integrated STACK Display systems with the latest STACK Multi-Function Technology. The Stack MFD comes standard with 14 inputs (enough to handle most drivetrain and driver input data streams) and can be expanded to monitor up to 45 channels for more advanced users. System includes internal voltage channel, 3 +/- 6g internal accelerometers, and lap sensor channel standard as well as 4 Universal pulse (speed) / analog (0-5v) inputs and 6 standard analog (0-5v) inputs. Lap beacon receiver and wheel speed sensor standard, to enable engine RPM, wheelspeed, g-force data and track mapping out of the box. Stack MFD's have 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional), with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
- Fully Configurable LCD
- 14 Standard Inputs
- Integrated Switches And Alarm Lights
- 32Mb Of Memory
- Adapter Harnesses Sold Separately
- Expandable Up To 45 Channels Of Data
| Attributes | |
| Bezel Color | Black |
| Bezel Style | Stack |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Face Color | Black |
| Gauge Size | 197mm x 104mm x 38mm, 7.750 in. W x 4.1 in. H x 1.5 in. D |
| Gauge Type | LCD Display |
| Harmonized Tariff Code (Schedule B) | 9029204080 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Lighting Color | White |
| Lighting Type | LED |
| NAFTA Preference Criterion Code | B |
| Pointer Color | White |
| SDR Required Flag | N |

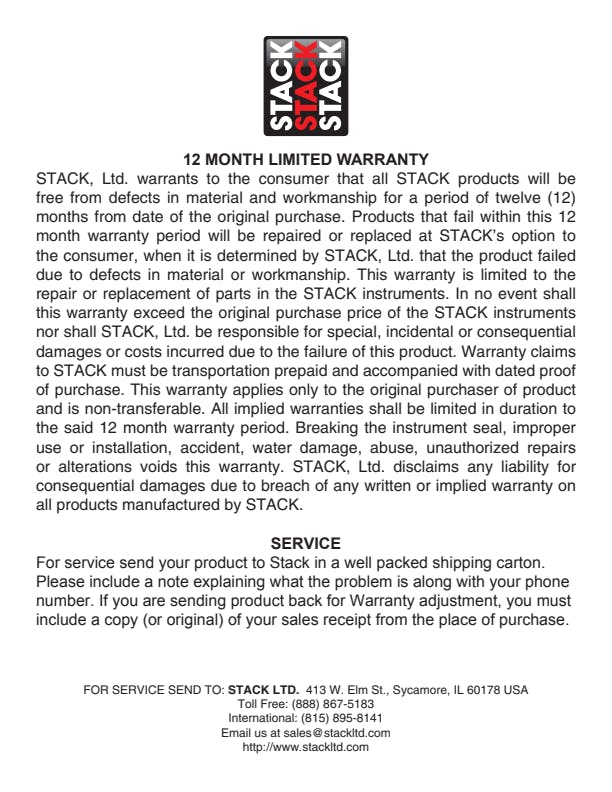

| Warranty Time | 12 |
| GTIN | 00046074157066 |
